Chair Rail Moulding 4" - 24

Chair Rail Moulding 4" - 24

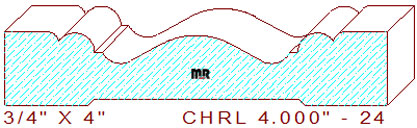

This stylish chair rail/casing moulding 4" - 24 measures 4.000" wide by .750" thickness, enabling the pattern to be milled from four quarter lumber. The belly band profile is composed of a 1-31/32" wide bidirectional cyma reversa in the center, flanked by a 5/64" wide line segment that transitions into a 3/8" wide thumbnail shaped bead, connected to a 9/16" wide horizontal line with 5/64" eased inner edges. The outer edges were intentionally left square to utilize any of our multiple radius edges, here's just one we think would complement this design, radius .187". Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .332" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
