Chair Rail Moulding 4" - 27

Chair Rail Moulding 4" - 27

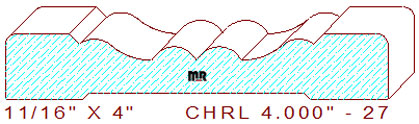

This beautifully elegant chair rail/casing moulding 4" - 27 measures 4.000" wide by .687" thickness, allowing the detail to be milled from four quarter lumber. The symmetrical profile is comprised of two 15/32" wide half round beads in the center, flanked by two, two tangent radius cyma reversa with beveled edges that transitions up to the 11/16" elevation, attached to a 43/64" wide line segment with a 1/8" eased edge on both side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .281" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
