Chair Rail Moulding 4" - 29

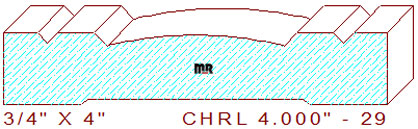

This modern belly band chair rail/symmetrical casing moulding 4" - 29 measures 4.000" wide by .750" thickness, enabling the detail to be machined out of four quarter lumber. The attractive profile is composed of a recessed 3-29/32" semicircular arc in the center, flanked on each side by an up-sloping beveled line that merges with a 3/8" wide line segment, connected to a small v-shaped notch with another 3/8" wide fillet. The side edges were intentionally left sharp so any of our radius edges could be used to make this detail infinitely custom. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

We're delighted you found a functional profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .137" (top knives) & .062" (bottom cutters.)
