Chair Rail 4" - 31
Chair Rail 4" - 31

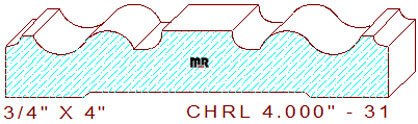

This elegant 4" - 31 chair rail measures 4.000" wide by .750" thickness, permitting the use of four-quarter lumber for milling on an industrial molder. The stylish symmetrical profile is composed of a 47/64" broad line flanked by two 19/64" wide congee derived from a 5/32" cove in the center, merged with a two tangent radius cyma reversa with a tiny 1/8" wide raised fillet and a 7/64" cove on each side edge of the profile. Become professionally efficient while searching over 16,000 patterns in our state-of-the-art moulding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.243
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.00
$290.00
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$309.00
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$337.50
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
