Chair Rail Moulding 4" - 34

Chair Rail Moulding 4" - 34

Chair Rail Moulding 4" - 34

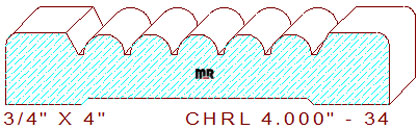

This reeded chair rail moulding 4" - 34 measures 4.000" wide by .750" thickness, allowing the detail to be milled from four quarter lumber. The symmetrical profile is composed of five recessed 27/64" wide half round circles divided by six 1/16" wide sunk fillets in the center, attached to a 1/8" wide bevel that connects to a 5/8" wide line segment with a 1/8" round-over on each side edge of the pattern. We offer this same detail in a 4-1/4" width for your review and consideration, chair rail 4.250" - 16, the edges were intentionally left square to utilize many of our radius edges.

We're delighted you found a functional profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .277" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
