Chamfered Edge Chair Rail Moulding 4" - 4

Chamfered Edge Chair Rail Moulding 4" - 4

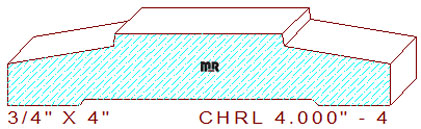

This Chamfered Edge Chair Rail/Casing Moulding 4" – 4 measures 4.000" wide by .750" thickness with a .500" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The symmetrical profile is comprised of a 1-3/4" wide by 1/8" double stepped fillet in the center of the pattern, flanked by 1-1/8" wide by 3/16" deep chamfer with eased edges, leaving a thickness dimension of 7/16" on each side edge of the pattern.

Ever wonder who produces and provides some of the finest quality custom moulding knives, customer service, all with affordable pricing? Please offer us an opportunity to demonstrate our abilities, you will be pleasantly surprised with our services.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
