Beveled Edge Chair Rail/ Casing Moulding 4" – 40

Beveled Edge Chair Rail/ Casing Moulding 4" – 40

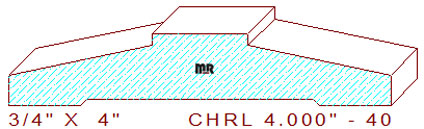

This Beveled Edge Chair Rail/Casing Moulding 4" – 40 measures 4.000" wide by .750" thickness with a .605" depth of cut on the top horizontal set of moulding knives. Please search our backout category for an appropriate relief cut for this pattern, we have a few options for you to choose from.

The symmetrical profile is comprised of a 1" wide by 1/8" deep double stepped fillet in the center of the pattern, flanked by 1-1/2" wide by 5/16" deep chamfer with 3/64" radiuses on the sides, leaving a thickness dimension of 5/16" on each edge of the pattern.

We invite you to search for other moulding design ideas for your elegant home, we have over 15,000 alternative profile options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom moulding designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
