Chair Rail Moulding 4" - 44

Chair Rail Moulding 4" - 44

Chair Rail Moulding 4" - 44

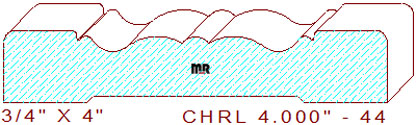

This designer chair rail moulding 4" - 44 measures 4.000" wide by .750" thickness, allowing the pattern to be milled out of four quarter lumber. The graceful profile is composed of a 9/32" wide half round bead in the center, flanked by a graceful two tangent radius cyma reversa with a 1/8" wide half round circle and a tiny 1/32" sunk fillet, joined to a 49/64" wide by 7/64" tall raised fillet with a 1/8" eased edge on each side of the design.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .281" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
