Chair Rail Moulding 4" - 45

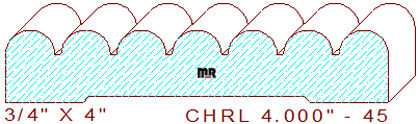

This reeded chair rail/pilaster moulding 4" - 45 measures 4.000" wide by .750" thickness, enabling the detail to be machined out of four quarter lumber. The beaded profile is composed of seven 33/64" wide half round circles divided by six 1/16" wide sunk fillets in the center. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs. We suggest changing the backout search parameters by a quarter of an inch or so to find a wider range of cutters.

We offer many exceptional grades of quality high-speed steel and carbide in various size widths for grinding and milling all our designs. Ever wonder why molding cutters break from time to time? Read our commentary on knife breakage for possible causes and solutions to this phenomenon.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .401" (top knives) & .062" (bottom cutters.)
