Chair Rail Moulding 4" - 50

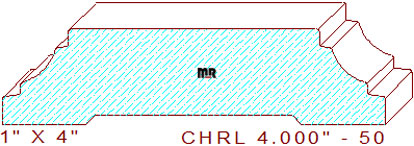

This fashionable chair rail moulding 4" - 50 measures 4.000" wide by 1.000" thickness, allowing the detail to be milled out of five quarter lumber. The symmetrical profile is machined from both the right and left vertical cutter heads on the moulder, enabling the detail to obtain any width within the parameters of the machinery used to cut the pattern, a decorative base moulding can also utilize the same cutter. The detail is comprised of a 5/16" tall vertical line segment on both bottom side edges, connected to a 3/16" wide flat line with a 1/8" upward step that joins to a 1/2" radius cove in the center, attached to a 1/8" wide by 3/16" tall perpendicular notch with a 3/64" eased edge on both top edges, leaving a 2-5/8" wide flat line segment on top.

We offer many beautiful door casing that will compliment this pattern, here is one you may want to review and consider, casing 4.000" - 99. Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Thickness = 4.000" / Depth of Cut = .915" (right blades) & .915" (left cutters).
