Chair Rail 4" - 62
Chair Rail 4" - 62

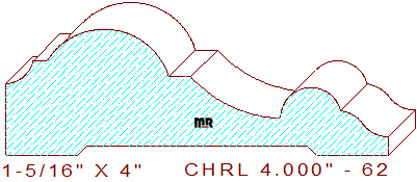

This distinguished 4" - 62 chair rail measures 4.000" width by 1.312" thickness, requiring the use of six-quarter lumber for machining on a commercial-grade molder. The beautiful profile contains a 5/16" cove attached to a 9/64" horizontal fillet on the top left. The line connects to 1-17/64" broad half-circle merged to a 15/64" comprehensive line and a 1-5/16" cavetto in the center. The concave semicircle connects to a half-round bead and a two-tangent radius ogee on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 1.121
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.00
$291.00
Total:
$601.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$329.00
$310.00
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$357.50
$338.50
Total:
$696.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
