Chair Rail 4" - 68
Chair Rail 4" - 68

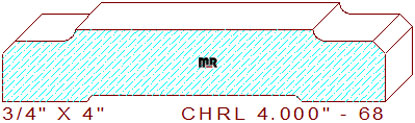

This beautiful 4" - 68 chair rail measures 4.000" width by .750" thickness, enabling four-quarter lumber for machining on a commercial molder. The symmetrical pattern contains a 2-1/2" flat section on the top center. The fillet gets flanked by a 5/8" wide congee derived from a 1/8" cove merged with a 1/8" by 1/8" beveled line, leaving a 1/2" thickness dimension on each of the design's side edges. We offer a three-one-half-inch version of this pattern you may want to review and consider, chair rail 3.500" - 99.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.343
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.00
$290.00
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$309.00
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$337.50
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
