Chair Rail Moulding 4" - 78

Chair Rail Moulding 4" - 78

Chair Rail Moulding 4" - 78

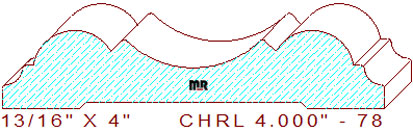

This enchanting chair rail molding 4" - 78 measures 4.000" width by .813" thickness permitting the use of four-quarter lumber for milling on an industrial-style molder. The beautiful symmetrical profile contains a one-inch radius scotia in the center. The cavetto gets flanked by a 13/64" wide splay-faced beveled line merged with a 13/16" broad half-circle with a 7/64" horizontal fillet and a 3/16" cove with a 3/64" eased edge on both side corners of the design.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years experience in woodworking and a former Weinig molder/grinder field service technician. Our custom profiles reflect your imagination's creative style from just an idea in one's mind to reality in their beautiful home. Let us help you complement the architectural decor of any room with any one or more of our attractive molding patterns.

For molding knife quoting purposes, click on the calculator below; we supplied only the important measurements; enter the appropriate dimensions in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.000" / Depth of Cut = .750" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
