Chair Rail Moulding 4" - 8

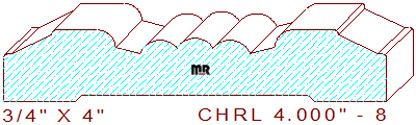

This custom chair rail molding 4" - 8 measures 4.000" width by .750" thickness, allowing the use of four-quarter lumber for milling on a commercial-grade molder. The lovely symmetrical profile contains three 15/64" radius half beads on the top center. The half-circles connect to an upsloping angled line merged to a 3/16" round-over and a 1/2" broad line segment with a twenty-six-degree chamfer that joins a 3/32" fillet on both sides of the design.

Looking for that special molding to enhance the architectural style of your current woodworking project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; please enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.000" / Depth of Cut = .251" (top knives) & .062" (bottom cutters).
