Chair Rail 4-1/16" - 3
Chair Rail 4-1/16" - 3

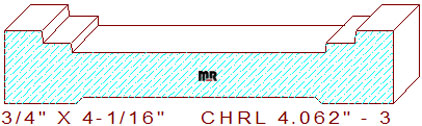

This tiered 4-1/16" - 3 chair rail measures 4.062" width by .750" thickness, permitting the use of four quarter lumber for milling on an industrial-grade molder. The stepped symmetrical pattern contains a 2-43/64" wide sunk fillet in the top center. The sides consist of a 25/64" flat line with a 1/8" vertical step that joins a 5/16" horizontal line segment with a 3/32" drop in elevation connecting to the center.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.062
Depth of Cut: 0.218
Bottom Cutter Head
Width: 4.062
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$293.22
$293.22
Total:
$586.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$312.47
$312.47
Total:
$624.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$341.34
$341.34
Total:
$682.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
