Chair Rail Moulding 4-1/4"

Chair Rail Moulding 4-1/4"

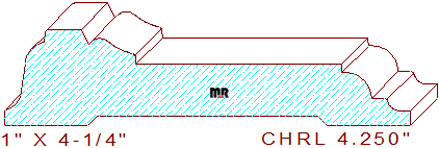

This unique chair rail moulding 4-1/4" measures 4.250" wide by 1.000" thickness, allowing the detail to be milled form five quarter lumber. The ornate profile is composed of a two tangent radius ogee on the left side, connected to a small raised fillet and a cyma reversa with a vertical step on top, joined to a 2-5/32" wide line in the center, attached to a 9/32" ovolo with a 1/8" radius congee on the right side of the design. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Become professionally efficient while searching over 15,000 mouldings in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .852" (top knives) & .093" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
