Chair Rail Moulding 4-1/4" - 1

Chair Rail Moulding 4-1/4" - 1

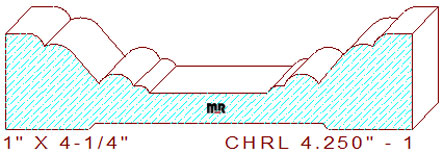

This decorative chair rail moulding 4-1/4" - 1 measures 4.250" wide by 1.000" thickness. The symmetrical profile is comprised of a 13/32" wide horizontal line with 3/16" radius edges that transition into a down sloping 1/4" radius arc, connected to two cascading beads with a 1-15/64" wide sunk fillet in the center of the design. You may want to browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We provide the cut steel size on all our template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .623" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
