Chair Rail 4-1/4" - 2

Chair Rail 4-1/4" - 2

Chair Rail 4-1/4" - 2

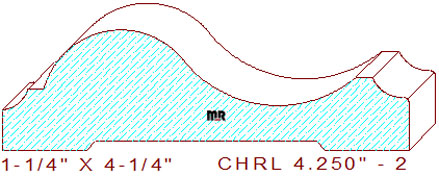

This astonishingly gorgeous chair rail moulding 4-1/4" - 2 measures 4.250" wide by 1.250" thickness, allowing the pattern to be milled from six quarter lumber. The beautiful profile is composed of a two tangent radius cyma reversa in the center, attached to a 11/64" wide line and a 5/16" cove with a 3/64" eased edge on the left, the opposite side consists of a 3/16" wide raised fillet and a 21/64" cove with a 1/16" rounded edge on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Homag, Scmi, Diehl, Wadkin, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = 1.000" (top knives) & .093" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
