Chair Rail 4-3/8" - 7
Chair Rail 4-3/8" - 7

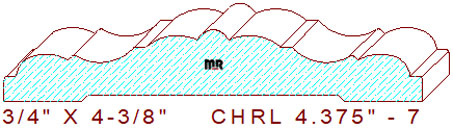

This extraordinary elegant 4-3/8" - 7 chair rail measures 4.375" wide by .750" thickness; it will require four-quarter lumber for milling. The beautiful profile is composed of an elliptical-shaped centered bead that's flanked by a cascading 1/2" radius arc on each side, joined to a 1/8" wide fillet and a 15/32" cove with a slight beveled edge, attached to a two tangent radius round-over and a 1/8" broad line segment with a 3/64" eased edge on each side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.375
Depth of Cut: 0.679
Bottom Cutter Head
Width: 4.375
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$330.00
$309.50
Total:
$639.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$350.50
$330.00
Total:
$680.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$381.25
$360.75
Total:
$742.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
