Chair Rail Moulding 4-7/16"

Chair Rail Moulding 4-7/16"

Chair Rail Moulding 4-7/16"

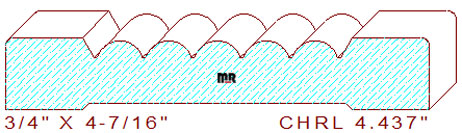

This beaded chair rail molding 4-7/16" measures 4.437" width by .750" thickness, allowing the use of four quarter lumber for milling on a commercial-grade molder. The attractive symmetrical profile five 1/4" radius half beads divided by six 1/32" sunk fillets on the top center. The half-circles connect to an upsloping sixty-degree angled line merged to 13/16" flat area with a 3/32" round corner on the design's side edges.

Looking for that special molding to enhance the architectural style of your current woodworking project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.437" / Depth of Cut = .250" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
