Chair Rail Moulding 4-1/2" - 13

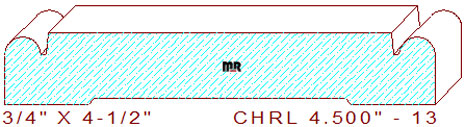

This symmetrical chair rail/door casing moulding 4-1/2" - 13 measures 4.500" wide by .750" thickness, allowing the detail to be machined out of four quarter lumber. The beaded profile is comprised of a 3-5/8" wide by 13/64" deep horizontal line with 3/64" eased edges in the center, connected to a 1/16" wide sunk fillet that transitions into a recessed (.050" for sanding) 3/16" radius half round circle on each side edge of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

We invite you to search for other moulding design ideas for your client's elegant home, we have over 15,000 alternative profile options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom designs.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.500" / Depth of Cut = .389" (top knives) & .062" (bottom cutters.)
