Chair Rail Moulding 4-1/2" - 17

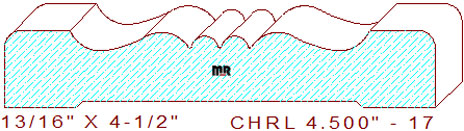

This fashionable chair rail/door casing moulding4-1/2" - 17 measures 4.500" wide by .812" thickness, permitting the detail to be machined out of four quarter lumber. The elegant symmetrical profile is composed of two 5/16" wide half round beads in the center, flanked by a 21/64" convex arc, tangent to a 1-17/64" and a 23/64" concave semicircles creating the graceful s-shaped curvature, joined to a 13/16" wide line segment with a 3/16" round-over on each side edge of the design.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.500" / Depth of Cut = .338" (top knives) & .063" (bottom cutters).
