Chair Rail Moulding 4-1/2" - 2

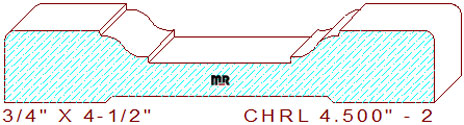

This beautiful chair rail/symmetrical casing moulding 4-1/2" - 2 measures 4.500" wide by .750" thickness, permitting the pattern to be milled out of four quarter lumber. This attractive profile is composed of a 1-1/2 wide by 1/16" deep sunk fillet in the center, flanked by a two 1/4" tangent radiuses creating the ogee with a 1/16" vertical step upward, connected to a one inch wide line segment with a 1/8" eased edge on each side of the design. We offer an alternative profile in the same size with similar design characteristics for your review and consideration, chair rail 4.500" - 22.

Do you need any supplies for your moulder or tool room? Choose any of our quality high speed knife steel or premium carbide, we generally can ship these items the same day. We are also a Weinig authorized agent offering some of the highest quality cutter heads and tooling supplies for your moulder and knife grinding room.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.500" / Depth of Cut = .345" (top knives) & .063" (bottom cutters).
