Chair Rail Moulding 4-1/2" - 3

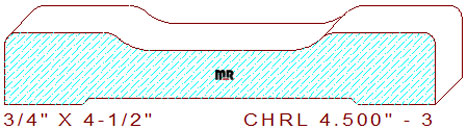

This graceful chair rail/door casing molding 4-1/2" - 3 measures 4.500" width by .750" thickness necessitating the use of a 4-3/4" wide blank of four-quarter lumber for milling on a commercial molder. The symmetrical profile contains a 1-29/64" sunk fillet in the center. The line is flanked by a 1/2" concave semicircle tangent to a 1/4" convex arc. The subtle s-shaped curvatures join a 1-1/32" horizontal line segment with 1/8" rolled edges on each side corner of the design.

Increase search efficiency while looking over 15,000 profile designs in our state-of-the-art molding catalog. Watch the short video on the first page of our catalog to find design ideas for your next woodworking project. We're sure you will locate the perfect embellished pattern to enhance your beautiful home or office's architectural style.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.500" / Depth of Cut = .281" (top knives) & .063" (bottom cutters).
