Chair Rail 4-3/4" - 10

Chair Rail 4-3/4" - 10

Chair Rail 4-3/4" - 10

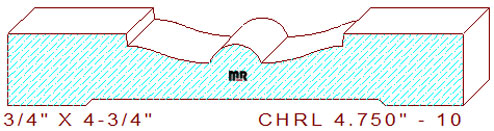

This lovely chair rail/symmetrical door casing 4-3/4" - 10 measures 4.750" width by .750" thickness, requiring a 5" wide blank of four-quarter lumber for milling on a commercial moulder. The graceful profile composes a 17/32" broad half-circle flanked by a shallow two tangent radius curvature in the center. The small depth wavy arcs connect to a 1/8" vertical line joined to a 1-1/4" flat line on each side of the pattern. The edges were intentionally left sharp to use many of our radius edges.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of beautiful patterns. We trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files; and see how easy the services we provide can increase productivity and reduce manufacturing costs.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.750" / Depth of Cut = .307" (top knives) & .063" (bottom blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
