Chair Rail 4-3/4" - 11

Chair Rail 4-3/4" - 11

Chair Rail 4-3/4" - 11

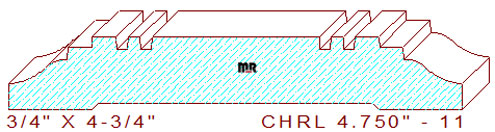

This grooved chair rail/symmetrical door casing 4-3/4" - 11 measures 4.750" width by .750" thickness, requiring a 5" wide blank of four-quarter lumber for milling on a commercial moulder. The balanced profile comprises a 1-3/4" broad flat line on the top center. The line is flanked by two 1/4" by 1/4" dados divided by a 1/8" line segment. Merged with two 1/4" wide by 1/8" deep stepped fillets joined to a 5/16" convex arc tangent to a 5/8" concave semicircle creating the lovely ogee on each side edge of the design.

We're delighted you found a beautiful profile that interests you; consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. Our companies have a few things in common: our passion for excellence and a quest to be paramount craftsmen for all our clients.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.750" / Depth of Cut = .488" (top knives) & .063" (bottom blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
