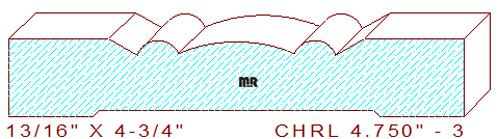

This Chair Rail Moulding 4-3/4" - 3 measures 4.750" wide by .812" thickness, the recessed by .015" profile portion is comprised of a centered 1.536" radius arch that is flanked by two half round beads with an attached thirty degree chamfer, the side fillets measure just over 1-1/32" wide. The side edges were intentionally designed to be sharp but could be milled with any size radius by the right and left vertical moulder spindles if desired.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
