Chair Rail 4-3/4" - 4

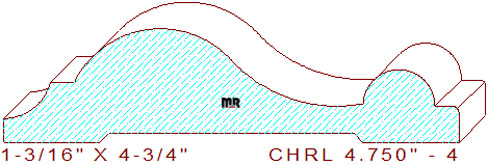

This eye-catching chair rail 4-3/4" - 4 measures 4.750" width by 1.188" thickness, demanding a 5" wide blank of six-quarter lumber for milling on a commercial moulder. The elegantly crafted pattern composes a 1/2" cove at a 1/4" thickness dimension joined to a 1/4" wide flat line on the top left. The short line connects to a 1" convex arc tangent to a 1-1/2" concave semicircle, creating the free-flowing s-shaped curvature in the center. The curve attaches to a 3/4" broad half-circle and a 1/4" fillet with a 1/16" eased edge on the design's right side.

You will be able to manufacture high-speed steel or carbide molding knives literally within minutes after downloading this beautiful pattern from the purchase DXF file link below. Take a moment to glance at our updated tooling and supplies catalog of high-quality products we supply for your machinery and knife grinding room. We offer competitive pricing and fast shipping options.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.750" / Depth of Cut = 1.031" (top knives) & .093" (bottom blades).
