Chair Rail 4-3/4" - 5

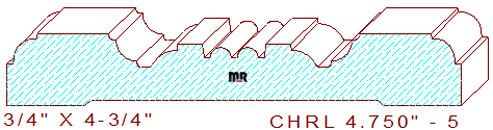

This ornate chair rail/symmetrical door casing 4-3/4" - 5 measures 4.750" width by .750" thickness, necessitating a 5" wide blank of four-quarter lumber for milling on a commercial moulder. The flashy profile comprises two small recessed half-circles divided by sunk fillets in the center. A 7/32" raised section flanks the middle joined to a 9/32" convex arc with a tiny congee attached to two upsloping cavettos. The remaining portion retains a 3/4" wide flat that merges with a 7/32" ovolo and a 1/16" fillet at a 7/16" thickness on both side edges of the pattern.

Custom-made elegance is a phrase used to define thousands of our moulding profile's beauty, style, and artisanship. Suppose you own a recently built house or older dated residence. In that case, we have the professional ability, knowledge, and experience to create visually stunning details to complement the architectural design of your elegant home and office.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.750" / Depth of Cut = .344" (top knives) & .063" (bottom blades).
