Chair Rail 4-3/4" - 6

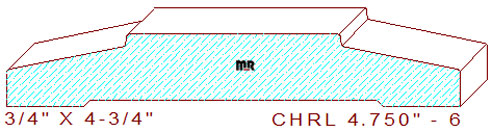

This modest chair rail 4-3/4" - 6 measures 4.750" width by .750" thickness, requiring a 5" wide blank of four-quarter lumber for milling on a commercial moulder. The symmetrical profile is utilized in places of worship around the western United States. It composes a 2-1/4" wide by 1/8" tall raised fillet on the top center. The steep steps connect to a 1-1/4" wide, eleven-degree downsloping angle that transitions the thickness to 3/8" on both sides of the pattern. All corners on the face side retain a 3/64" eased edge that will aid in the finishing process.

Mirror Reflections has over thirty-five years of experience in designing and manufacturing meticulous CAD drawings, acrylic templates, and profile knives available within the woodworking industry. Encounter our excellent customer service with affordable pricing by allowing us to demonstrate our abilities; you will be pleasantly impressed with our services.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.750" / Depth of Cut = .564" (top knives) & .063" (bottom blades).
