Chair Rail 4-3/4" - 7
Chair Rail 4-3/4" - 7

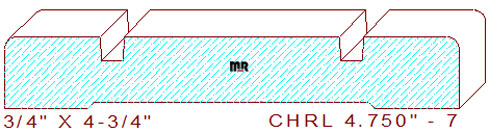

This simplistic 4-3/4" - 7 chair rail measures 4.750" width by .750" thickness, requiring a 5" wide blank of four-quarter lumber for milling on a commercial moulder. The symmetrical profile contains a 2-1/4" broad line segment on the top center. The line is flanked by a 1/4" by 1/4" groove joined to a 1" wide fillet with 1/8" rounded corners on both side edges.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.750
Depth of Cut: 0.313
Bottom Cutter Head
Width: 4.750
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$329.00
$329.00
Total:
$658.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$351.00
$351.00
Total:
$702.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$384.00
$384.00
Total:
$768.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
