Chair Rail 4-13/16"
Chair Rail 4-13/16"

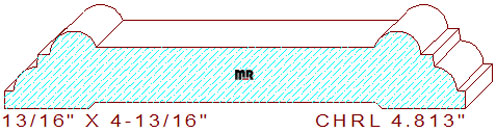

This 4-13/16" double bead chair rail measures 4.813" width by .812" thickness, requiring a 5-1/16" wide blank of four-quarter lumber for milling on a commercial moulder. The elegant profile contains a 2-29/32" broad sunk fillet on the top center. The flat line gets flanked by a 1/4" radius half-round with a 1/8" by 1/8" perpendicular step. Both steps join a 1/4" ovolo with a 3/32" horizontal line segment, leaving a 3/16" thickness on each side edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.812
Depth of Cut: 0.625
Bottom Cutter Head
Width: 4.812
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$332.22
$332.22
Total:
$664.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$354.47
$354.47
Total:
$708.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$387.84
$387.84
Total:
$775.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
