Chair Rail 4-15/16" - 1
Chair Rail 4-15/16" - 1

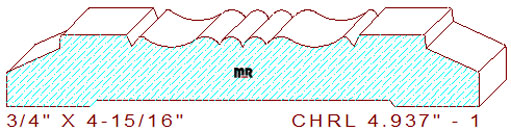

This opulent 4-15/16" - 1 chair rail measures 4.937" width by .750" thickness, necessitating a 5-3/16" wide blank of four-quarter lumber for milling on a commercial moulder. The plush profile comprises two 1/4" broad half-circles connected to horizontal s-shaped curvatures with chamfered edges in the center. The downward angles attach to 11/16" wide by 9/64" tall raised fillets with twenty-four-degree bevels and 3/64" eased edges on both the design's right and left sides.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.937
Depth of Cut: 0.575
Bottom Cutter Head
Width: 4.937
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$338.72
$338.72
Total:
$677.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$361.47
$361.47
Total:
$722.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$395.59
$395.59
Total:
$791.19
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
