Chair Rail 4-15/16" - 2
Chair Rail 4-15/16" - 2

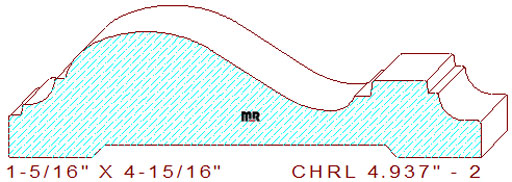

This eye-catching 4-15/16" - 2 chair rail measures 4.937" width by 1.312" thickness, demanding a 5-3/16" wide blank of six-quarter lumber for milling on a commercial molder. The unique profile composes a 1/8" wide by 5/64" tall notch joined to a 17/64" cove and a 1/8" horizontal fillet on the top left. The short flat line connects to a beautiful downsloping, free-flowing four-tangent radius s-shaped curvature in the center. The lower portion of the curve attaches to an 11/64" broad line joined to an 11/64" tall by 5/8" wide raised fillet with a horizontal line segment and a 9/32" cove with a 3/64" eased edge on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.937
Depth of Cut: 1.125
Bottom Cutter Head
Width: 4.937
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$361.47
$338.72
Total:
$700.20
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$384.22
$361.47
Total:
$745.69
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.34
$395.59
Total:
$813.94
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
