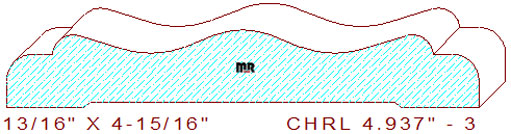

This wavy chair rail moulding 4-15/16" - 3 measures 4.937" width by .812" thickness requiring a 5-3/16" wide blank of four-quarter lumber for milling on an industrial moulder. The well-crafted symmetrical profile retains a 13/16" convex arc in the center. The shallow arc is flanked by two one-inch concave semicircles tangent to a 7/32" bulging bead; joined to a 9/32" quarter round section on each of the design's side edges. Explore our backout category for an appropriate relief cut for the bottom of this detail; we're confident you will find a suitable pattern to match your needs. We suggest changing the backout search parameters by a quarter of an inch to see a broader range of available cutters.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and a former Weinig field service technician. Our custom profiles reflect your imagination's creative style from just an idea in one's mind to reality in their beautiful home. Let us help you complement the architectural decor of any room with one or more of our attractive molding patterns.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially, provided the machine is properly calibrated. Two high points in the pattern layout were deliberately positioned on the same plane, our disciplined design features will assure excellent hold-down conditions while milling as long as the pressure shoe is parallel to the machine bed-plates.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.938" / Depth of Cut = .689" (top knives) & .063" (bottom blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
