Chair Rail Moulding 5" - 14

Chair Rail Moulding 5" - 14

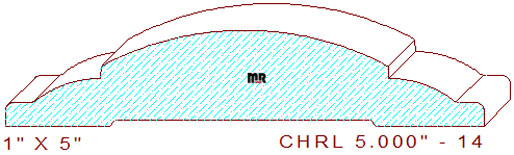

This arched chair rail/casing moulding 5" - 14 measures 5.000" wide by 1.000" thickness, the detail will require five quarter lumber for milling on an industrial moulder. The rounded top profile is composed of a 3-3/16" radius arc in the center, flanked by 1/8" vertical steps that transition into a 3/4" wide semicircle and a 1/4" wide lines segment with a 3/32" eased edge leaving a 1/4" thickness dimension on each side of the pattern. Explore our backout category for an appropriate relief cut for the bottom side of this detail, we’re confident you will find a functional design to suit your needs.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company, or, simply connect our profile catalog to your website, this will enable you to offer more eye-catching profiles to your clients while reducing production cost spent on molding design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .973" (top knives) & .063" (bottom cutters.)
