Chair Rail Moulding 5" - 19

Chair Rail Moulding 5" - 19

Chair Rail Moulding 5" - 19

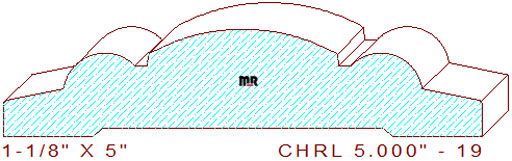

This unique chair rail/door casing moulding 5" - 19 measures 5.000" wide by 1.125" thickness, necessitating the use of five or six quarter lumber for milling on an industrial moulder. The bold symmetrical profile is composed of a two inch radius arc in the center, flanked by a 1/8" vertical step with a 1/8" wide sunk fillet that merges with a 3/4" wide thumbnail shaped arc, attached to a 5/8" wide 11.31 degree angled line with a 3/64" eased edge leaving a 3/8" wide thickness dimension on each side edge of the pattern.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .939" (top knives) & .093" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
