Chair Rail Moulding 5" - 20

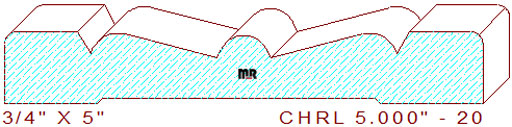

This decorative chair rail moulding 5" - 20 measures 5.000" wide by .750" thickness enabling the pattern to be machined out of four quarter lumber. The embellished profile could also be utilized as a door casing moulding, it is composed of a 9/16" wide elliptical shaped half round arch in the center, flanked by an up-sloping 14.506 degree angled line with a 19/64" rounded edge, merged with a upward sixty degree chamfer that joins to a 49/64" wide horizontal line segment with a 1/8" round-over on each side edge of the design. We offer an alternative profile in the same width but with different interior dimensions for your review and consideration, chair rail 5.000" - 21.

Architects, interior designers, contractors, lumber mills and molding manufacturers have been utilizing our vast variety of moulding designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.000" / Depth of Cut = .278" (top knives) & .063" (bottom cutters).
