Chair Rail Moulding 5" - 27

Chair Rail Moulding 5" - 27

Chair Rail Moulding 5" - 27

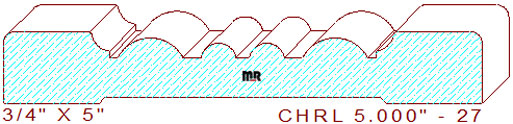

This reeded symmetrical casing/chair rail molding 5" - 27 measures 5.000" width by .750" thickness, permitting the use of a 5-1/4" wide blank of four quarter lumber for milling on a commercial-grade molder. The elegant profile contains two 23/64" wide half beads separated by a 9/64" sunk fillet, connected to a 3/16" wide fillet merged to an 11/16" broad convex arc joined to a 3/32" horizontal line segment and an upsloping vertical line in the center. The remaining portion consists of a 7/32" cove joined to a 29/32" flat section with a 1/8" rolled edge on both top corners of the design.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.000" / Depth of Cut = .280" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
