Chair Rail 5-1/4" - 1
Chair Rail 5-1/4" - 1

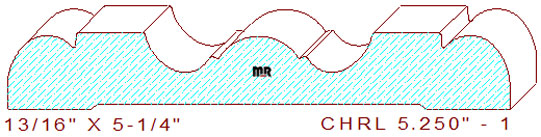

This 5-1/4" - 1 elegant chair rail measures 5.250" width by .812" thickness, requiring a 5-1/2" wide blank of four-quarter lumber for milling on an industrial moulder. The striking symmetrical profile comprises a 1/2" radius convex arc flanked by short upsloping angled lines in the center. Bordered by an elliptical-shaped scotia joined to a 23/32" wide by 7/64" tall raised fillet with an elliptical-shaped convex semicircle on each side edge of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.250
Depth of Cut: 0.694
Bottom Cutter Head
Width: 5.250
Depth of Cut: 0.694
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$379.00
$379.00
Total:
$758.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$403.00
$403.00
Total:
$806.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$439.00
$439.00
Total:
$878.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
