Chair Rail 5-3/8" - 6

Chair Rail 5-3/8" - 6

Chair Rail 5-3/8" - 6

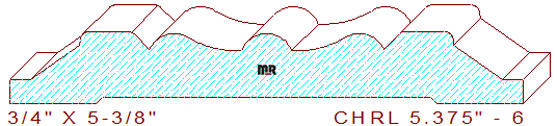

This 5-3/8" - 6 chair rail/symmetrical casing measures 5.375" wide by .750" thickness. The stylish symmetrical profile is comprised of a 9/32" radius half-circle in the center of the pattern, flanked by two bidirectional cyma reversa with chamfered edges, connected to a raised fillet with 3/32" eased edges, joined to a beveled line with a 7/32" wide fillet, leaving a 1/4" thickness dimension on each side edge of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.375
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.375
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$349.25
$349.25
Total:
$698.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.75
$373.75
Total:
$747.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$398.25
$398.25
Total:
$796.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
