Chair Rail Moulding 5-7/16"

Chair Rail Moulding 5-7/16"

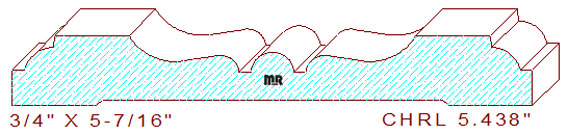

This Chair Rail Moulding 5-7/16" measures 5.438" wide by .750" thickness, with a .383" depth of cut on the top horizontal set of knives. Search our backout category for an appropriate relief cut for this detail, you may have to change the backout search parameters by a quarter of an inch or so to find a suitable size cutter to mill the bottom side of this pattern.

The fancy symmetrical profile is comprised of a 29/64" wide half round circle in the center flanked by sunk fillets, connected to an elongated cyma recta, raised fillet and an ovolo on each side edge of the pattern.

Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
