Chair Rail Moulding 5-1/2" - 11

Chair Rail Moulding 5-1/2" - 11

Chair Rail Moulding 5-1/2" - 11

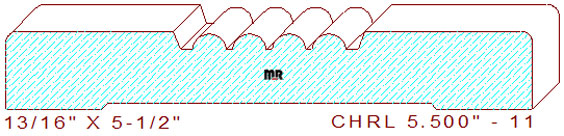

This reeded pilaster, chair rail or door casing moulding 5-1/2" - 11 measures 5.500" wide by .812" thickness, allowing the detail to be milled out of four quarter lumber. The symmetrical beaded profile is composed of four 23/64" wide recessed (.031") half round circles flanked by three 1/16" wide sunk fillets in the center, attached to a 1/8" wide line segment with a seventy degree up-sloped line that transitions into a 1-13/16" wide flat line with a 1/8" eased edge on each side of the pattern.

Mirror Reflections provides the cut steel size on all their molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of them caring about the overall success of your business.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .281" (top knives) & .063" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
