Chair Rail Moulding 5-1/2" - 14

Chair Rail Moulding 5-1/2" - 14

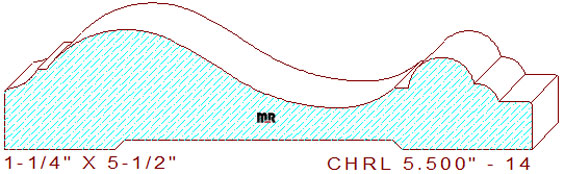

This stylish chair rail moulding 5-1/2" - 14 measures 5.500" wide by 1.250" thickness enabling the pattern to be milled from six quarter lumber. The striking profile is comprised of four graceful tangent radiuses creating a down sloping cyma reversa in the center, attached to a 3/32" wide horizontal line and a 3/8" cavetto leaving a 5/8" thickness dimension on the left side of the detail, the other side consists of an 11/16" wide half round circle, flanked by a 9/64" wide straight line on the left and a 1/4" quarter round on the right, joined to a 11/32" wide horizontal line with an eased edge leaving a 1/2" thickness dimension on the thin side of the design. You may want to browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = 1.000" (top knives) & .093" (bottom cutters.)
