Chair Rail 5-1/2" - 18
Chair Rail 5-1/2" - 18

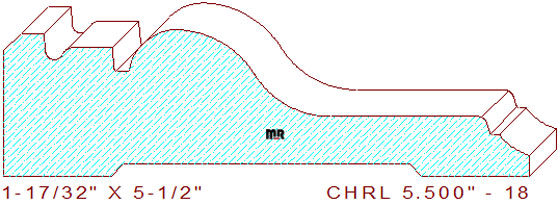

This beautifully bold 5-1/2" - 18 chair rail measures 5.500" wide by 1.531" thickness, necessitating the use of eight-quarter lumber for milling on an industrial-style molder. The intricate profile is composed of a 3/16" wide beveled edge joined to a 1/4" broad segment on the left, connected to a miniature 3/32" radius scotia that transitions into a 1/8" rounded edge and a flat line. It's attached to a 5/32" wide by 1/4" deep sunk fillet that joins to a graceful three tangent radius down-sloping arc tangent off of a flat line, merged with a 3/32" rounded step and a 3/8" flat line with a 5/8" cove on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.562
Depth of Cut: 0.436
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 1.094
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$163.22
Not Needed
$393.00
$368.00
Total:
$924.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.47
Not Needed
$418.00
$393.00
Total:
$983.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$186.34
Not Needed
$455.50
$430.50
Total:
$1072.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
