Chair Rail Moulding 5-1/2" - 19

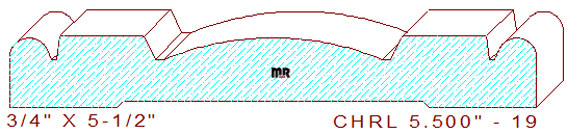

This symmetrical chair rail/casing moulding 5-1/2" - 19 measures 5.500" wide by .750" thickness, permitting the detail to be milled out of four quarter lumber. The beautiful symmetrical profile is composed of a 2-9/32" wide semicircular arc in the center, flanked by a 3/32" wide sunk fillet that merges with a 1/4" up-sloping beveled line, attached to a 57/64" wide line segment joined to another smaller 3/64" wide sunk fillet with a 7/16" half round bead on each side edge of the pattern.

Mirror Reflections provides the cut steel size on all their molding template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of them caring about the overall success of your business.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .413" (top knives) & .062" (bottom cutters.)
