Chair Rail Moulding 5-1/2" - 4

Chair Rail Moulding 5-1/2" - 4

Chair Rail Moulding 5-1/2" - 4

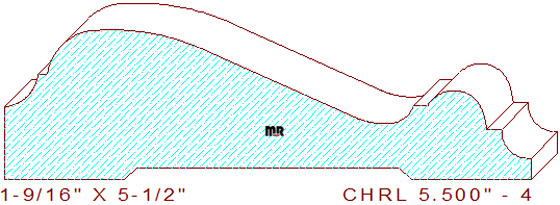

This decorative chair rail moulding 5-1/2" - 4 measures 5.500" wide by 1.562" thickness. The embellished profile is comprised of four tangent radiuses creating a down sloping cyma reversa in the center, attached to a 3/32" wide horizontal line and a 3/8" radius cove on the taller side, the other side consists of a thumbnail shaped arc flanked by 5/32" wide fillets with a 9/32" cove on the thin side of the design. The depth of cut is too large for milling with just the top horizontal cutter head, the pattern will machine best by milling on the right and top molder spindles. You may want to browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

With over 15,000 profile designs in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = 1.037" (top knives) & .125" (bottom cutters.)

Thickness = 1.563" / Depth of Cut = .308" (right blades.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
