Chair Rail 5-1/2" - 6
Chair Rail 5-1/2" - 6

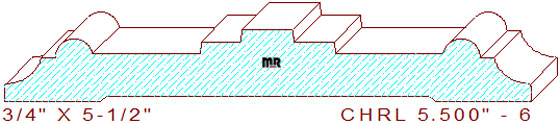

This distinctive 5-1/2" - 6 chair rail measures 5.500" width by .750" thickness, permitting the use of four-quarter lumber for milling on an industrial-grade molder. The exquisite symmetrical pattern contains a 17/32" broad by 1/8" tall raised fillet on the top center. Connected to a 27/64" flat line with an additional 1/8" elevation drop that joins to a 1-1/8" sunk fillet and a 25/64" half-circle, 9/64" broad line and a 3/8" cove with a 3/64" rollover on each side edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.730
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$393.00
$368.00
Total:
$761.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$418.00
$393.00
Total:
$811.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$455.50
$430.50
Total:
$886.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
