Chair Rail 5-7/8"
Chair Rail 5-7/8"

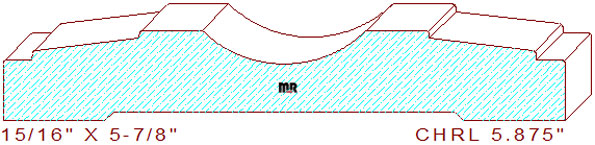

This beautifully bold chair rail/symmetrical casing moulding 5-7/8" measures 5.875" wide by .937" thickness permitting a 6-1/8 wide blank of five-quarter lumber for milling on a commercial moulder. The attractive profile contains a 1-23/32" broad concave partial circle in the center flanked by a 21/32" broad segment with a 5/64" vertical step. It's joined to a 6.515-degree downsloping beveled line with a 3/32" drop in elevation and attached to a 19/64" fillet with 3/64" eased edges, leaving a 5/8" thickness dimension on each side edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.875
Depth of Cut: 0.500
Bottom Cutter Head
Width: 5.875
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$387.50
$387.50
Total:
$775.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$414.00
$414.00
Total:
$828.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$453.75
$453.75
Total:
$907.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
