Cornice 2-7/8"

Cornice 2-7/8"

Cornice 2-7/8"

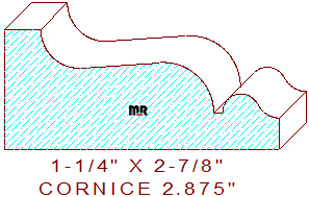

This visually appealing 2-7/8" cornice piece measures 2.875" wide by 1.250" thickness, necessitating the use of six-quarter lumber for milling on an industrial-style molder. The embellished profile is composed of a 3/8" broad line segment on the top left, connected to a 13/32" cove that's tangent to an up-sloping four degree angled line connected to a 17/32" radius arc in the center, attached to a 3/32" wide sunk fillet with a two tangent radius cyma reversa on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.875
Depth of Cut: 0.924
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$238.75
Not Needed
Total:
$238.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.25
Not Needed
Total:
$253.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.75
Not Needed
Total:
$267.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
